A high-performance TRIP steel enhanced by ultrafine grains and hardening precipitates

Publication date: 5 August 2017
Source:Materials & Design, Volume 127
Author(s): P. Xie, M. Han, C.L. Wu, Y.Q. Yin, K. Zhu, R.H. Shen, J.H. Chen

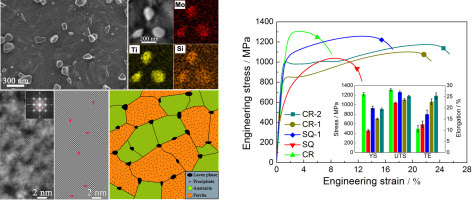

Using thermo-mechanical processing, a heterogeneous microstructure with ultrafine grains and efficient hardening nanoprecipitates was introduced into a transformation induced plasticity (TRIP) steel with composition of Fe-12Mn-2Ni-Mo-Ti-(Al), such that the fabricated steel has an excellent combination of yield strength, ductility and thermal stability. It is shown that the Laves phase precipitates which hindered the ultrafine grains from coarsening were formed at high temperature, whereas the most efficient hardening nanoprecipitates inside these ultrafine grains were introduced at a lower temperature. The former precipitates are hexagonal (Fe,Mn)2(Mo,Ti) Laves phase containing Si and the later nanoprecipitates belong to the B2 phase.

Graphical abstract

http://ift.tt/2oJfLR1
